Biometric Devices

Attendance Terminals That Read a Fingerprint, a Face or a Card

Fingerprint, face recognition and proximity card terminals that feed attendance straight into TimeTrax — and most of the units below read more than one of the three.

Choosing a System

How to Choose a Biometric Device

Every unit below feeds attendance straight into TimeTrax. What differs is how a person is identified, where the unit can be mounted, and whether it also opens a door.

These terminals identify people in three ways — fingerprint, face and card — and most of the units below do more than one of them on the same reader. Locally a fingerprint unit is still called a thumb attendance machine, and you will see finger print terminals written as two words in plenty of tenders and quotations. All of it describes the hardware on this page.

Whichever unit you pick, the punch it produces lands in the attendance module of the HCM software, which is where the shift rule and the payroll consequence live. In practice these are deployed alongside Attendance Management System and Door Access Control System, which read from the same records. For the wider context, best attendance management software in Pakistan.

Fingerprint, face or card

A card proves possession, not identity — it records that a card was presented, nothing more. Card readers are still the fastest to roll out, because most organizations already issue a badge, and the cheapest per door. That trade-off is worth making where speed matters more than certainty. Where one employee clocking in for another carries a real cost, pair the reader with fingerprint or face on the same terminal rather than relying on supervision.

Sensor, lighting and capacity

On fingerprint units the sensor decides the rejection rate: an optical sensor reads reliably on clean, undamaged fingers and struggles with worn, dry or wet ones, which matters far more on a production line than in an office. Face recognition is more sensitive to its surroundings — strong backlighting behind the employee is the usual cause of slow recognition, and it is far cheaper to solve at site survey than after installation.

Mixed sites, mixed methods

Several terminals here read cards and biometrics together, so office staff can badge in while shop-floor teams use a fingerprint, and several handle attendance and access on the same reader — which saves buying a second device for the same doorway. Check the card technology line in each specification, because the formats they read are not the same. TimeTrax treats every capture method as the same attendance record, so policy can differ by site without splitting your reporting.

SpeedFace-V4L biometric device

SpeedFace-V4L

Linux-based hybrid-biometric access control and time and attendance terminal with visible light facial recognition and palm recognition.

  • Visible light facial recognition
  • Anti-spoofing algorithm against print attack (laser, colour and B/W photos), video attack and 3D mask attack
  • Multiple verification methods: face / palm / card / password
  • Available card modules: 125kHz ID card / 13.56MHz IC card / HID card / Felica card
  • Supplement light with adjustable brightness
  • 1,000 face template capacity, 1,000 palm template capacity
Request a quote
MB-460 biometric device

MB-460

Supports multiple verification methods including face, fingerprint, card and password, combinations between them, and basic access control.

  • Face Capacity: 1,500
  • Fingerprint Capacity: 2,000
  • RFID Card Capacity: 2,000
  • Card Capacity: 2,000
  • Record Capacity: 100,000
  • Display: 2.8 inch TFT screen
  • Communication: TCP/IP, USB-Host, Wi-Fi (optional)
  • Verification: 12V output
  • Dimensions: 200.25 x 148 x 33.04 mm (L x W x T)
  • Power Supply: DC 12V 1.5A
Request a quote

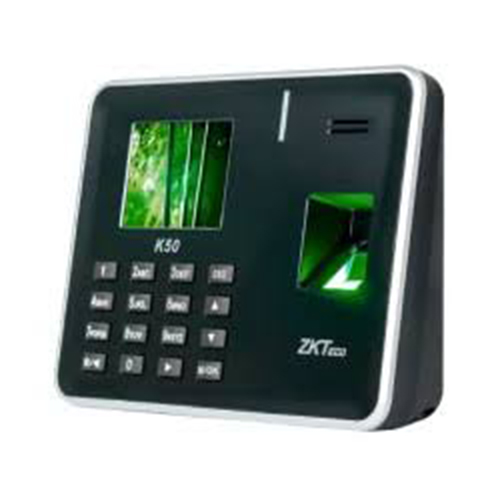

K50 biometric device

K50

Fingerprint and card time attendance terminal with simple access control and a built-in backup battery, for sites where a compact wall unit is all that is needed.

  • Fingerprint Capacity: 3,000
  • Card Capacity: 3,000 (SSR option: 1,000)
  • Record Capacity: 100,000
  • Display: 2.8 inch TFT screen
  • Communication: TCP/IP, USB-Host
  • Access Control: Simple, with electric lock interface
  • Backup Battery: Built-in
  • Power Supply: DC 5V / 800mA
  • Dimensions: 138 x 183 x 45.5 mm (L x W x H)
  • Operating Temperature: 0°C to 45°C
Request a quote

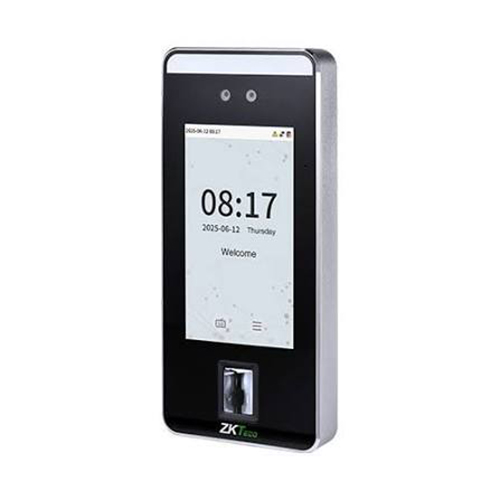

SpeedFace-V5L biometric device

SpeedFace-V5L

Multi-biometric terminal reading face, palm and fingerprint, with touchless recognition that still works when the wearer is masked.

  • Face Capacity: 6,000
  • Palm Capacity: 3,000
  • Fingerprint Capacity: 6,000 (optional: 10,000)
  • Display: 5 inch touch screen
  • Fingerprint Sensor: Z-ID
  • Palm Recognition: Palm shape, print and vein, 0.35s per hand
  • CPU: Quad Core A55 1.2GHz
  • RAM / ROM: 512MB (1GB with palm) / 8GB
  • Supplement Light: Yes
  • Virtual Keypad: 16 keys
Request a quote

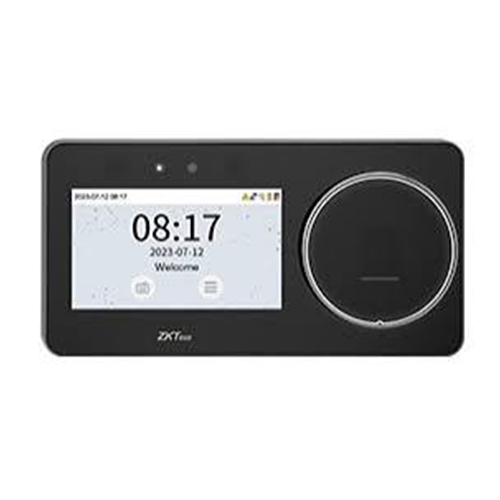

FaceDepot-7B biometric device

FaceDepot-7B

Indoor facial recognition station with a seven-inch screen, recognising at up to three metres with optional fingerprint and card modules.

  • Face Capacity: 10,000
  • Fingerprint Capacity: 10,000 (optional)
  • Card Capacity: 10,000 (optional)
  • Recognition Distance: 0.3 m to 3 m
  • Display: 7 inch touch screen, 1280 x 720
  • Camera: 2MP dual lens
  • Communication: TCP/IP, USB-Host, Wi-Fi (optional), RS232, RS485, Wiegand in/out
  • Power Supply: 12V 3A
  • Operating Temperature: -10°C to 45°C
  • Operating Humidity: 10% to 90%
Request a quote

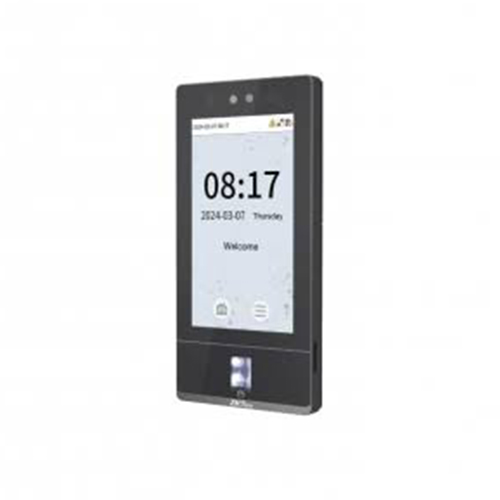

SenseFace 7A biometric device

SenseFace 7A

SIP-ready multi-biometric access terminal with video intercom, in-glass fingerprint and an IP65 outdoor rating.

  • Face Capacity: 10,000
  • Fingerprint Capacity: 10,000
  • User Capacity: 50,000
  • Transaction Capacity: 300,000
  • Display: 7 inch TFT touch, 600 x 1024
  • Camera: 1MP WDR binocular
  • Recognition Speed: Face under 0.35s, fingerprint under 0.5s
  • Recognition Distance: 30 cm to 200 cm
  • Card Modules: 125kHz ID / 13.56MHz IC
  • Protection: IP65
  • Protocols: ONVIF, SIP video intercom
Request a quote

Not sure which device fits your sites?

Capture method, headcount per door and connectivity all change the answer. Tell us how your sites run and we will recommend the right terminal — and show it feeding attendance into TimeTrax.

Connect with us
